Electrodes

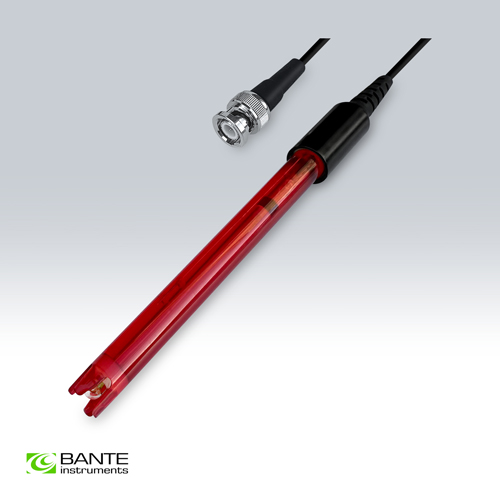

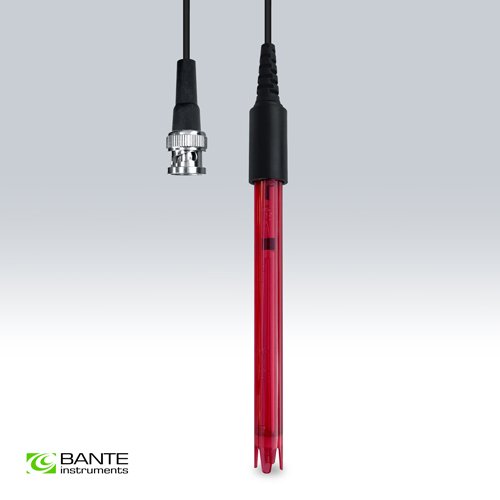

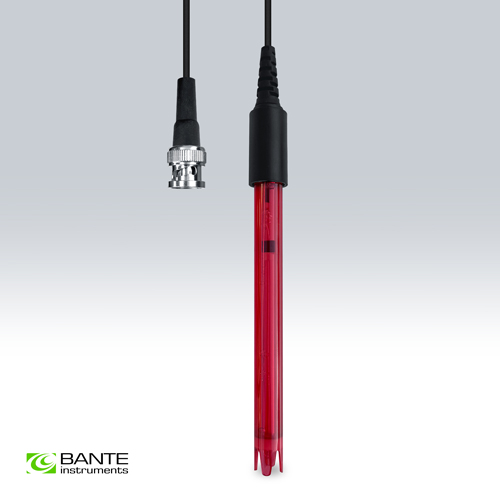

E502 ORP Electrode
General-purpose ORP electrode, suitable for measuring liquids with weak redox potential.
Features:
• Platinum-band ORP electrode
• Suitable for general applications
Model | E502 | |
Range | -2000 to 2000 mV | |
Sensor |
| Platinum-band |
Operating Temperature |
| 0 to 60°C / 32 to 140°F |
Reference |
| Ag/AgCl |
Liquid Junction |
| Teflon |
Body Type | Epoxy | |
Cable Length | 1 m / 3.3 ft | |
Connector | BNC | |
Dimensions | 120 × 12(Ø) mm | |
Weight | 70 g |
Ordering Code | Electrode Includes |
E502 | --- |
| Items | Description |
| ORP Standard Solution | For ORP calibration |
Ordering Code | Dimensions and Weights |
E502 | 23 × 10 × 5 cm, 0.1 kg |
