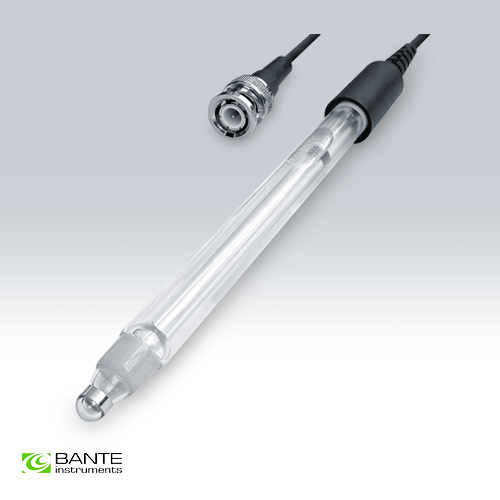

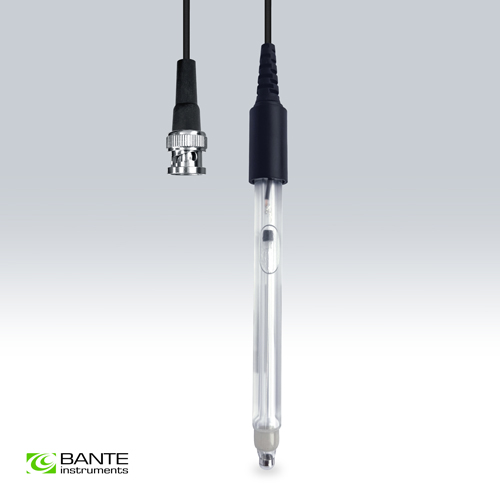

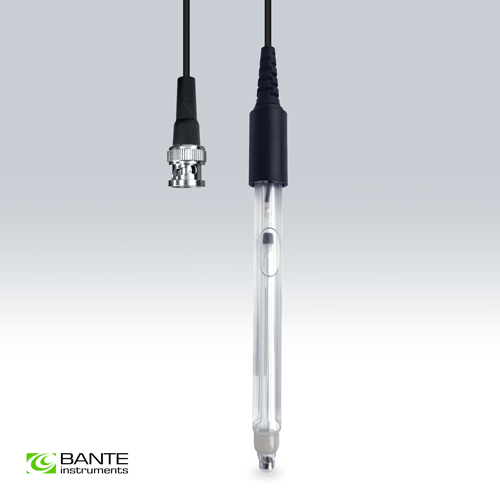

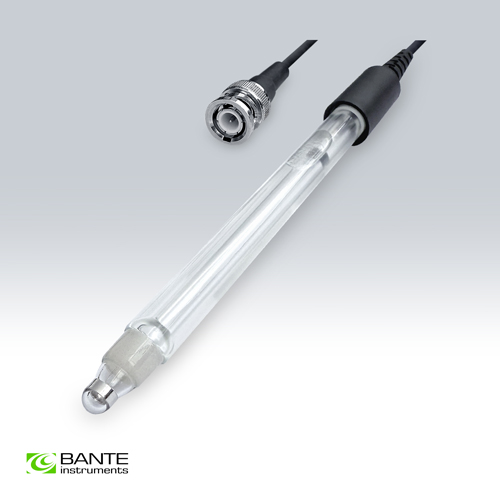

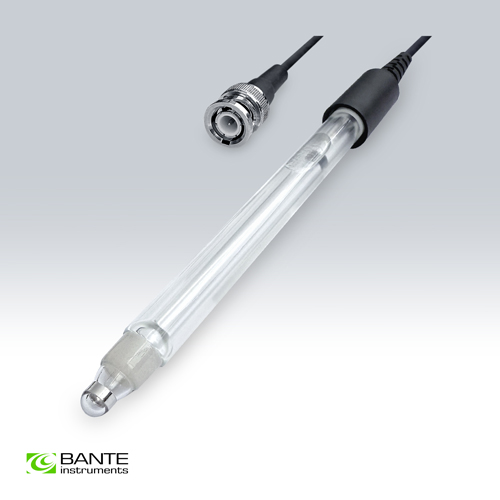

E504 ORP Electrode
Glass ORP electrode, suitable for measuring high temperature and mildly corrosive liquids.
Features:
• Glass body ORP electrode
• Suitable for accurate oxidation-reduction potential measurement in laboratories
Model | E504 | |
Range | -2000 to 2000 mV | |
Sensor |
| Platinum-band |
Operating Temperature |
| 0 to 80°C / 32 to 176°F |
Reference |
| Ag/AgCl |
Liquid Junction |
| Annular ceramic |
Body Type | Glass | |
Cable Length | 1 m / 3.3 ft | |
Connector | BNC | |
Dimensions | 120 × 12(Ø) mm | |
Weight | 80 g |
Ordering Code | Electrode Includes |
E504 | --- |
| Items | Description |
| ORP Standard Solution | For ORP calibration |

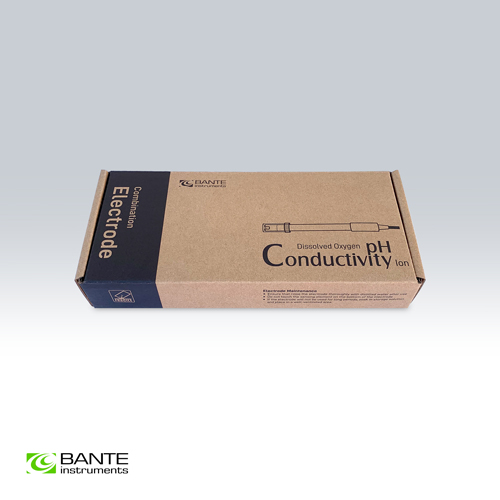

Ordering Code | Dimensions and Weights |
E504 | 23 × 10 × 5 cm, 0.1 kg |
