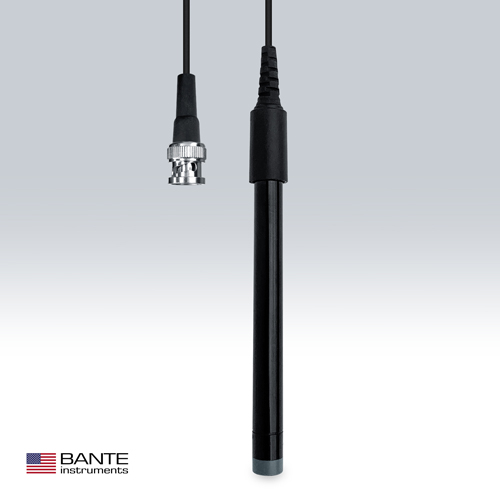

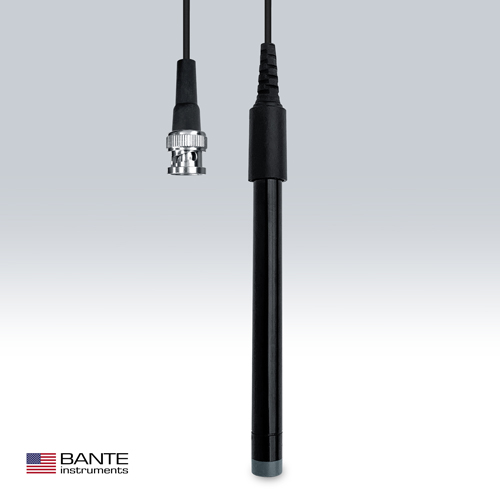

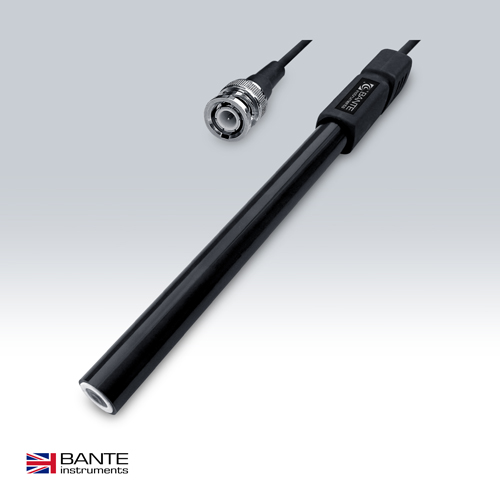

ISE-NO3 Nitrate Electrode
Nitrate ion selective electrode, range: 0.4 to 62000 ppm.
Features:
• Combination nitrate ion selective electrode
• Suitable for laboratory and field applications
• No filling solutions
• No membrane replacements
• Built in dry reference electrode
• Long lifetime
Model | ISE-NO3 | |
Concentration Range | 0.4 to 62000 ppm | |
Slope | 54 to 59 mV/decade | |
pH Range | 2 to 11 pH | |
Operating Temperature | 5 to 50°C / 41 to 122°F | |
Interferences | Clˉ, NO²ˉ | |
Body Type | Epoxy | |
Cable Length | 1 m / 3.3 ft | |
Connector | BNC | |
Dimensions | 150 × 12(Ø) mm | |
Weight | 70 g |
Ordering Code | Electrode Includes |
ISE-NO3 | Nitrate standard solution 1000 ppm (30 mL) |
Ionic strength adjuster (30 mL) |
| Items | Description |
| Ion Standard Solutions | For ion concentration calibration |
| Ionic Strength Adjusters | For adjusting the pH and background ionic strength |
Ordering Code | Dimensions and Weights |
ISE-NO3 | 23 × 10 × 5 cm, 0.1 kg |
