Electrodes

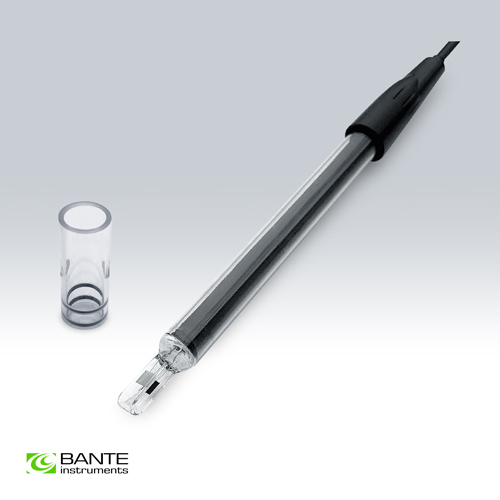

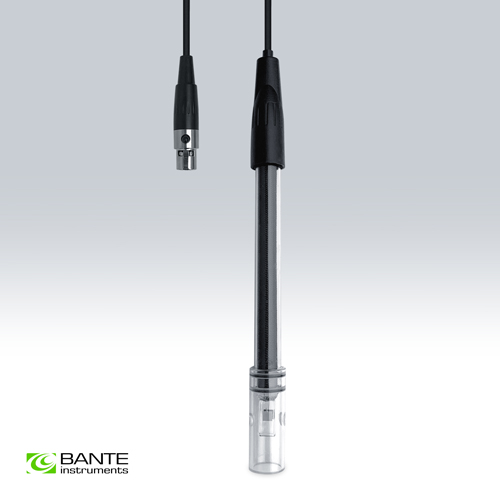

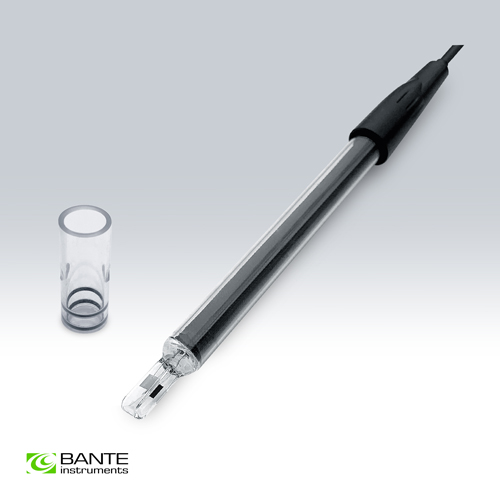

CON-1 Conductivity Electrode
Platinum conductivity electrode, suitable for measuring the general water samples.
Features:
• 2-pole platinum conductivity cell
• Cell constant (K)=1
Model | CON-1 | |
Range | 10 µS/cm to 20 mS/cm | |
Operating Temperature | 0 to 80°C / 32 to 176°F | |
Material | Platinum sensor, glass body | |
Cell Constant | K=1 | |
Connector | 6-pin mini-DIN | |
Cable Length | 1 m / 3.3 ft | |
Dimensions | 150 × 12(Ø) mm | |
Weight | 80 g |
Ordering Code | Electrode Includes |
CON-1 | --- |
| Items | Description |
| Conductivity Standard Solutions | For conductivity calibration |
Ordering Code | Dimensions and Weights |
CON-1 | 23 × 10 × 5 cm, 0.1 kg |
