Electrodes

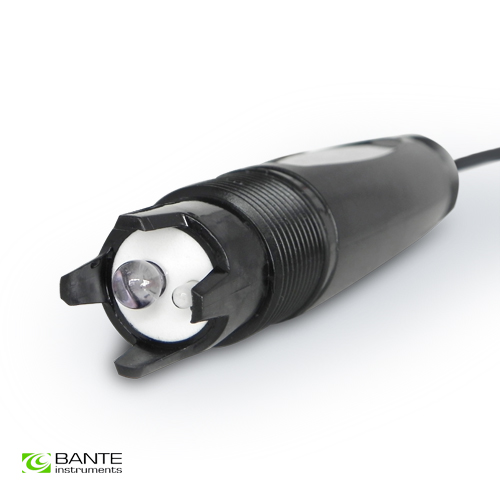

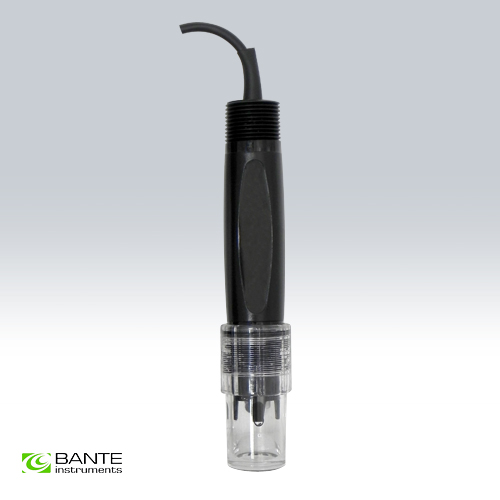

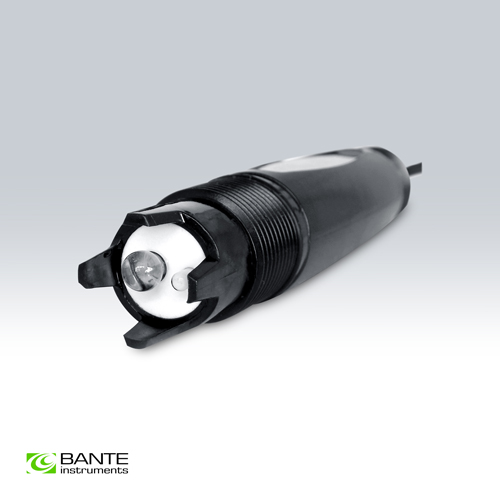

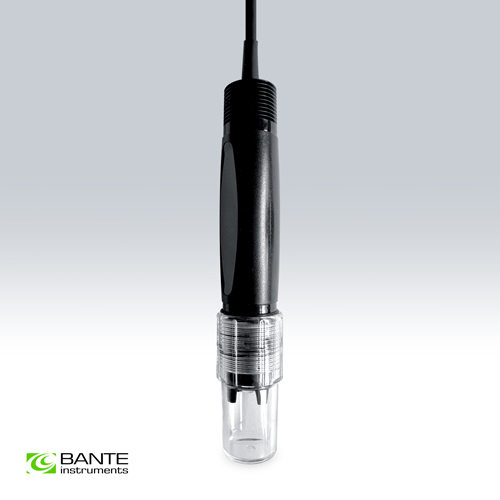

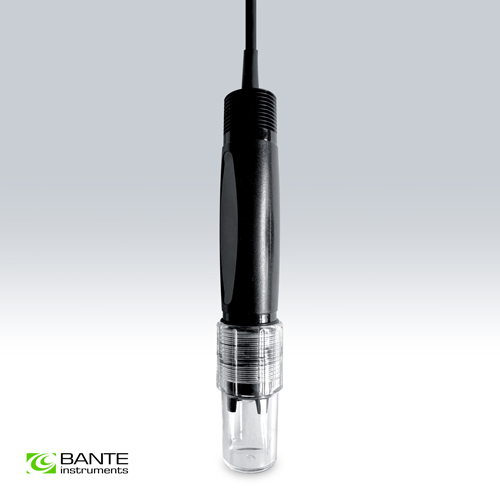

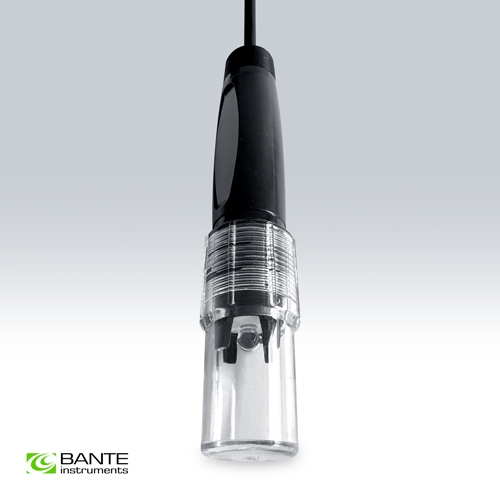

IE-20T pH Electrode
Industrial pH electrode, suitable for monitoring the pH and temperature in aqueous solutions.
Features:
• Spherical pH-sensitive membrane
• Built-in temperature sensor
• 3/4 inch thread
Model | IE-20T | |
Range | 0 to 14 pH | |
Operating Temperature |
| 0 to 60°C / 32 to 140°F |
Temperature Sensor |
| NTC 10 KΩ |
Maximum Process Pressure |
| 0.6 MPa / 87 PSIG |
Reference |
| Ag/AgCl |
Liquid Junction |
| Teflon |
Body Type |
| PPS/PC |
Electrode Diameter |
| 29.5 mm |
Electrode Length |
| 150 mm |
Maximum Transmission Distance |
| 30 m / 98 ft |
Cable Length |
| 5 m / 16 ft |
Weight | 500 g |
Ordering Code | Electrode Includes |
IE-20T | --- |
| Items | Description |
| pH Electrode Storage Solution | For electrode maintenance and storage |
| pH Electrode Cleaning Solution | For general cleaning |
| pH Electrode Cleaning Solution | For removing the protein contamination |
Ordering Code | Dimensions and Weights |
IE-20T | 23 × 7.5 × 8.5 cm, 0.7 kg |
