Electrodes

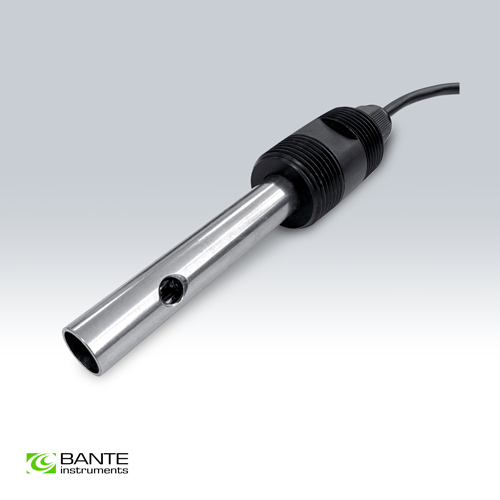

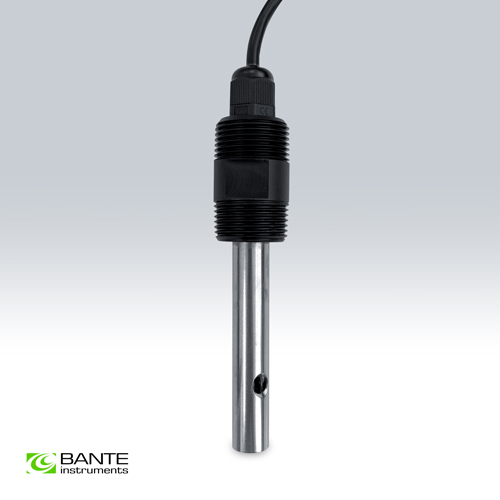

IE-50MT Conductivity Electrode
Industrial conductivity electrode, range: 10 µS/cm to 20 mS/cm.
Features:
• Platinum cell conductivity electrode
• Suitable for measuring the general water samples
• Built-in temperature sensor
• Cell constant (K)=1
• 3/4 inch thread
Model | IE-50MT | |
Range | 10 µS/cm to 20 mS/cm | |
Operating Temperature |
| 0 to 80°C / 32 to 176°F |
Temperature Sensor |
| NTC 10 KΩ |
Maximum Process Pressure |
| 0.6 MPa / 87 PSIG |
Body Type |
| Stainless steel |
Electrode Diameter |
| 13 mm |
Electrode Length |
| 130 mm |
Maximum Transmission Distance |
| 30 m / 98 ft |
Cable Length |
| 5 m / 16 ft |
Weight | 500 g |
Ordering Code | Electrode Includes |
IE-50MT | --- |
| Items | Description |
| Conductivity Standard Solutions | For conductivity calibration |
Ordering Code | Dimensions and Weights |
IE-50MT | 23 × 7.5 × 8.5 cm, 0.7 kg |
