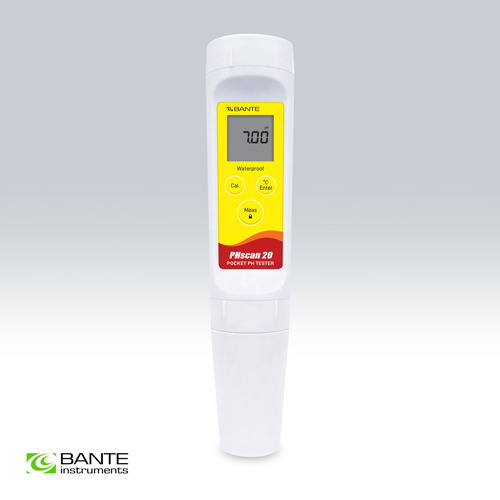

PHscan20F Pocket pH Tester

Economical pocket pH tester, 2 points calibration, suitable for measuring the surface pH of gel samples, accuracy: 0.05 pH.

Features:
• Economical pocket pH tester is easy to use.
• 2 points push-button calibration with auto-buffer recognition.
• Flat surface pH-sensitive membrane is suitable for measuring the surface pH of gel samples.
• Automatic temperature compensation ensures accurate readings over the entire range.
• Auto-power off effectively conserves battery life.
• Hold function momentarily freezes reading for easy viewing and recording.

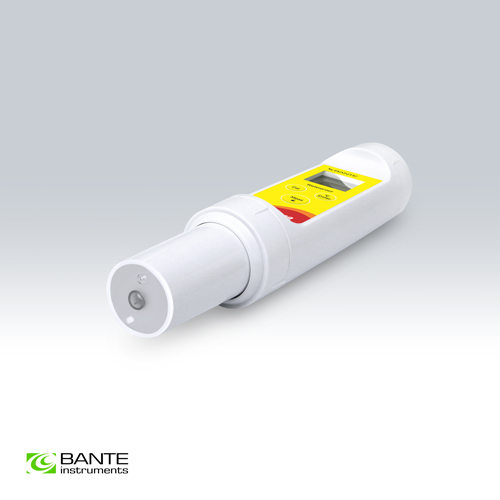

• Replaceable electrode module reduces maintenance and replacement cost.
• Waterproof feature to ensure complete protection in harsh environments.

Pocket pH Tester

Applications:
• Paint and dye testing
• Printing and cosmetic industries

Specifications Ordering Info Optional Accessories Packaging

Model		PHscan20F
pH
Range		0.00 to 14.00 pH
Resolution		0.01 pH
Accuracy		±0.05 pH
Calibration		2 points
pH Buffer Options		USA (pH 4.01/7.00/10.01)
Temperature
Range		0 to 60°C
Resolution		1°C
Accuracy		±1°C
Other Specifications
Temperature Compensation		0 to 60°C / 32 to 140°F, automatic
Hold Function		Manual
Auto-Power Off		8 minutes after last key pressed
Display		Single-line LCD (21 × 21 mm)
Power Supply		3 × 1.5V LR44 micro alkaline batteries
Battery Life		Approximately 150 hours of continuous use
Dimensions		185 × 40(Ø) mm
Weight		100 g

Ordering Code	Tester Includes
PHscan20F-E	pH 4.01, 7.00, 10.01 buffer reagents
PHscan20F-E	Plastic box

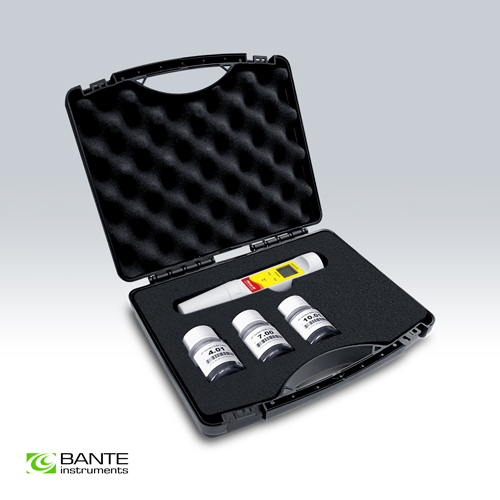

PHscan20F-K	pH 4.01, 7.00, 10.01 buffer solutions
PHscan20F-K	Carrying case

Items	Description
E-PHSCAN-ST Electrode	For measuring the liquids
E-PHSCAN-FT Electrode	For measuring the semisolid and gel samples
E-PHSCAN-LT Electrode	For measuring the samples in small containers
pH Buffer Solutions	For pH calibration
pH Electrode Storage Solution	For electrode maintenance and storage
pH Electrode Cleaning Solution	For general cleaning
pH Electrode Cleaning Solution	For removing the protein contamination
