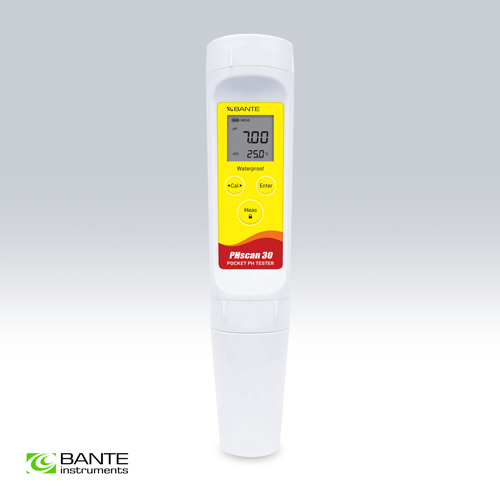

PHscan30F Pocket pH Tester
High-accuracy pocket pH meter, containing 5 setting options, 1 to 3 points calibration, suitable for measuring the surface pH of semisolid samples, accuracy: 0.01 pH.
Features:
• High-accuracy pocket pH meter is equipped with a dual display LCD.

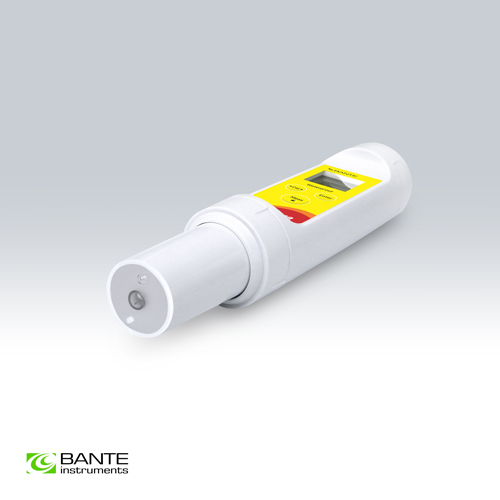

• Flat surface pH electrode is suitable for measuring the surface pH of semisolid samples.
• 1 to 3 points calibration with automatic recognition for USA and NIST buffers.
• Automatic temperature compensation ensures accurate readings over the entire range.
• Auto-read function senses and locks the measurement endpoint.
• Auto-power off effectively conserves battery life.
• Setup menu allows setting the number of calibration points, temperature unit, etc.
• Reset function automatically resumes all settings back to the factory defaults.
• Replaceable electrode module reduces maintenance and replacement cost.
• Waterproof feature to ensure complete protection in harsh environments.
Applications:
• Papers and textiles
• Measurements of fruit and cream
Model | PHscan30F | |
pH | ||
Range | -1.00 to 15.00 pH | |
Resolution | 0.01 pH | |
Accuracy | ±0.01 pH | |
Calibration | 1 to 3 points | |
pH Buffer Options | USA (pH 4.01/7.00/10.01) / NIST (pH 4.01/6.86/9.18) | |
Temperature | ||
Range | 0 to 60°C / 32 to 140°F | |
Resolution | 0.1°C/°F | |
Accuracy | ±1°C / ±1.8°F | |
Calibration | 1 point | |
Calibration Range | Reading ±10°C/°F | |
Other Specifications | ||
Temperature Compensation | 0 to 60°C / 32 to 140°F, automatic | |
Hold Function | Manual / Auto-read measurement endpoint | |
Auto-Power Off | 8 minutes after last key pressed | |
Display | Dual-line LCD (21 × 21 mm) | |
Power Supply | 2 × 1.5V AAA batteries | |
Battery Life | Approximately 200 hours of continuous use | |
Dimensions | 185 × 40(Ø) mm | |
Weight | 100 g |
Ordering Code | Tester Includes |

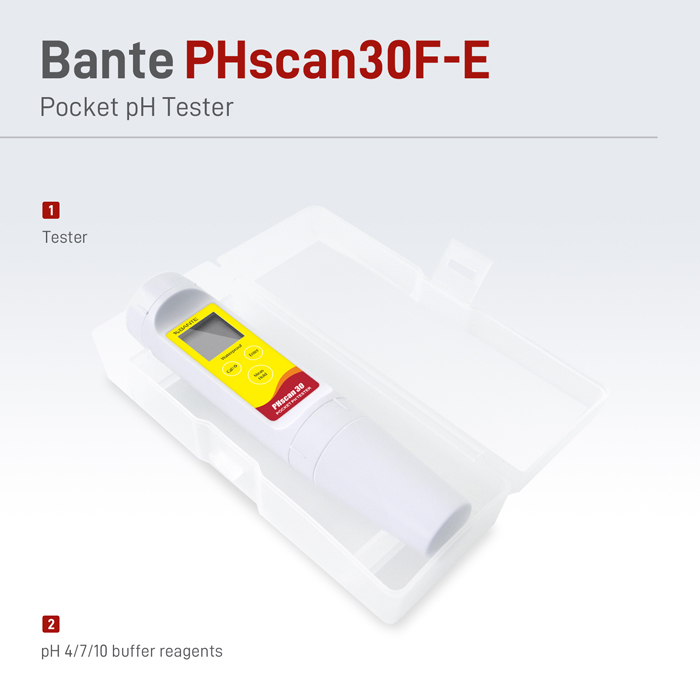

PHscan30F-E | pH 4.01, 7.00, 10.01 buffer reagents |
Plastic box | |

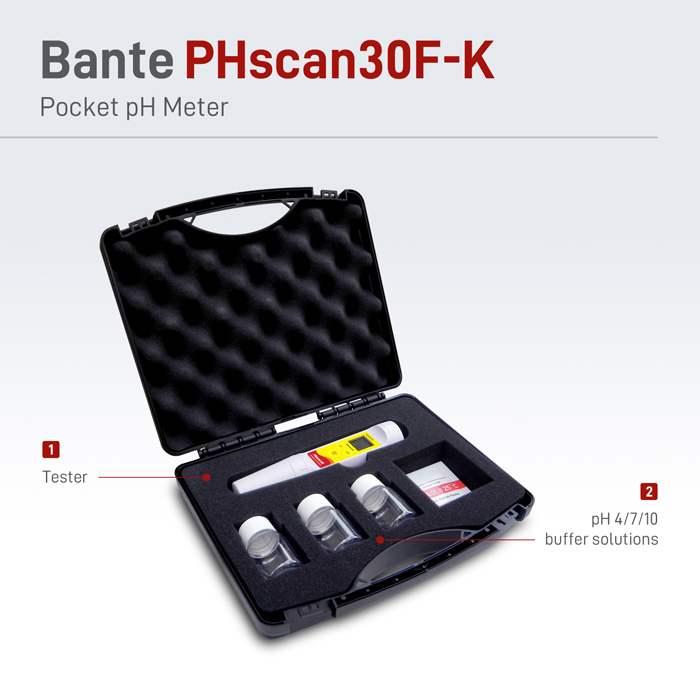

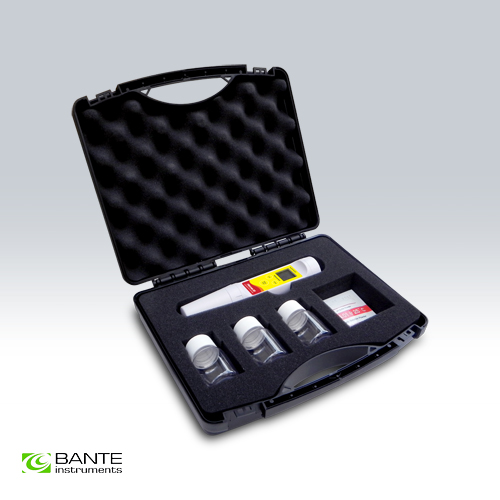

PHscan30F-K | pH 4.01, 7.00, 10.01 buffer solutions |
Carrying case |
| Items | Description |
| E-PHSCAN-ST Electrode | For measuring the liquids |
| E-PHSCAN-FT Electrode | For measuring the semisolid and gel samples |
| E-PHSCAN-LT Electrode | For measuring the samples in small containers |
| E-PHSCAN-PT Electrode | For piercing and measuring the semisolid samples |

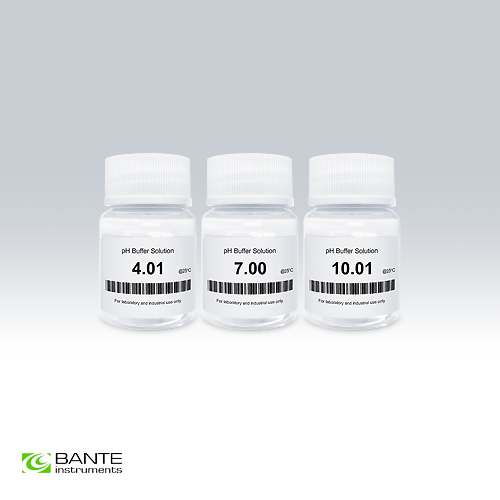

| pH Buffer Solutions | For pH calibration |
| pH Electrode Storage Solution | For electrode maintenance and storage |
| pH Electrode Cleaning Solution | For general cleaning |
| pH Electrode Cleaning Solution | For removing the protein contamination |
Ordering Code | Dimensions and Weights |
PHscan30F-E | 20 × 11 × 7 cm, 0.5 kg |
PHscan30F-K | 28 × 8 × 25 cm, 1.5 kg |
