Conductivity Meters

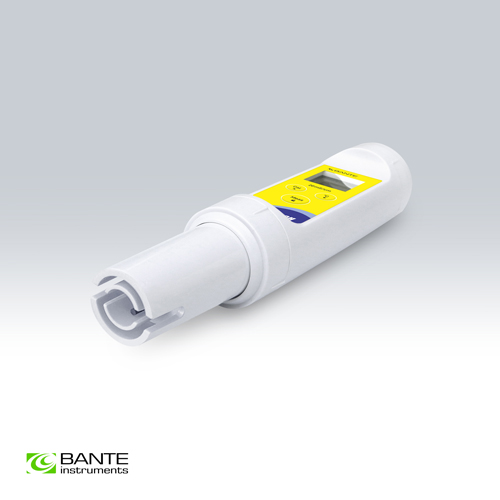

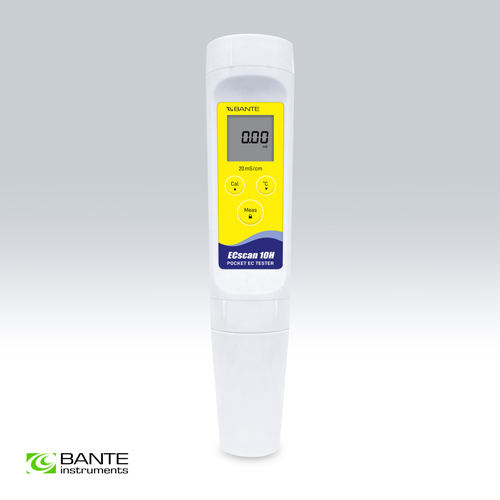

ECscan10H Pocket Conductivity Tester

Single-range pocket conductivity tester for measuring the high conductivity liquids, measurement range: 0.1 to 19.99 mS/cm.

Features:
• High-range conductivity tester is easy to use.
• 1 point calibration allows using the custom calibration solution (10 to 17 mS/cm).
• Automatic temperature compensation corrects the conductivity readings to 25°C.
• Hold function momentarily freezes reading for easy viewing and recording.
• Auto-power off effectively conserves battery life.
• Replaceable electrode module reduces maintenance and replacement cost.
• Waterproof feature to ensure complete protection in harsh environments.

Pocket Conductivity Tester

Applications:
• Water and wastewater treatments
• Environmental monitoring and other industrial applications

   Model


ECscan10H

   Conductivity



   Range


0.1 to 19.99 mS/cm

   Resolution


0.01 mS/cm

   Accuracy


±1% F.S.

   Calibration


1 point

   Calibration Solution


12.88 mS/cm

   Temperature



   Range


0 to 50°C

   Resolution


1°C

   Accuracy


±1°C

   Other Specifications



   Temperature Compensation


0 to 50°C / 32 to 122°F, automatic

   Temperature Coefficient


2%/°C

   Reference Temperature


25°C

   Cell Constant


K=1

   Hold Function


Manual

   Auto-Power Off


8 minutes after last key pressed

   Display


Single-line LCD (21 × 21 mm)

   Power Supply


3 × 1.5V LR44 micro alkaline batteries

   Battery Life


Approximately 150 hours of continuous use

   Environmental Conditions


0 to 50°C / 32 to 122°F, relative humidity < 80%

   Dimensions


185 × 40(Ø) mm

   Weight


100 g

   Ordering Code

Tester Includes

   ECscan10H

Conductivity standard solution 12.88 mS/cm

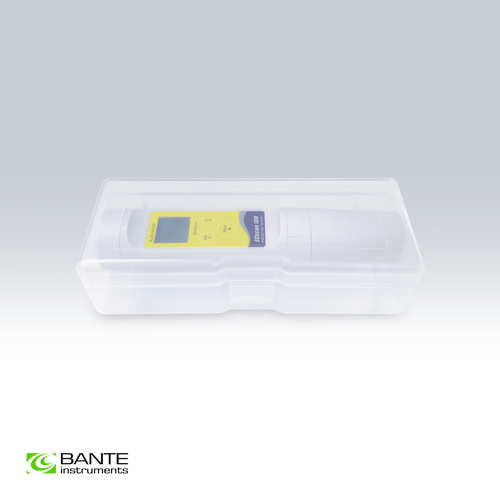

Plastic box

Items Description
E-ECSCAN-C1-100K Electrode Replacement conductivity electrode
Conductivity Standard Solutions For conductivity calibration

   Ordering Code

Dimensions and Weights

   ECscan10H

20 × 11 × 7 cm, 0.5 kg
