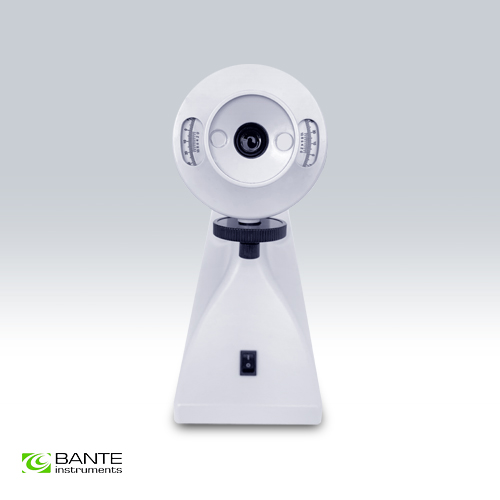

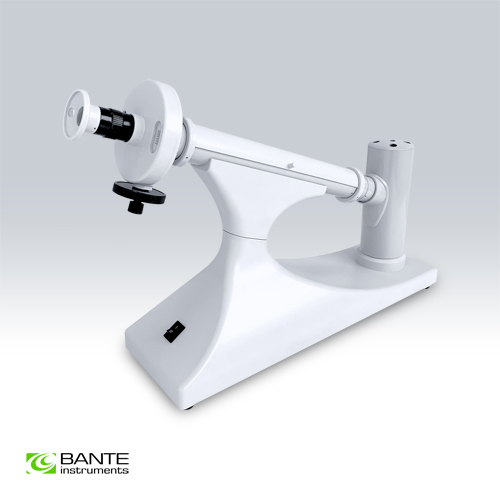

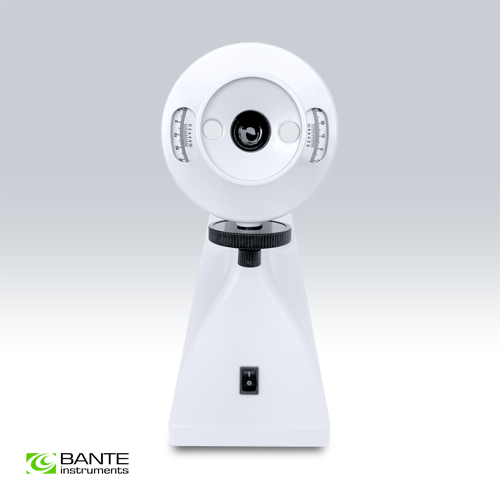

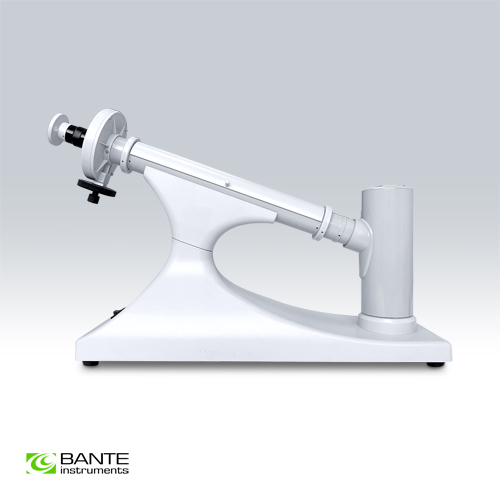

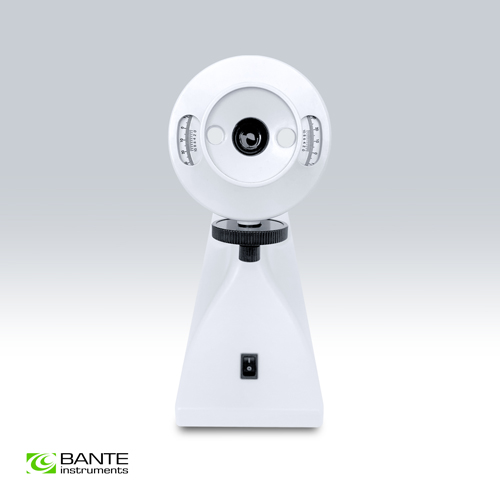

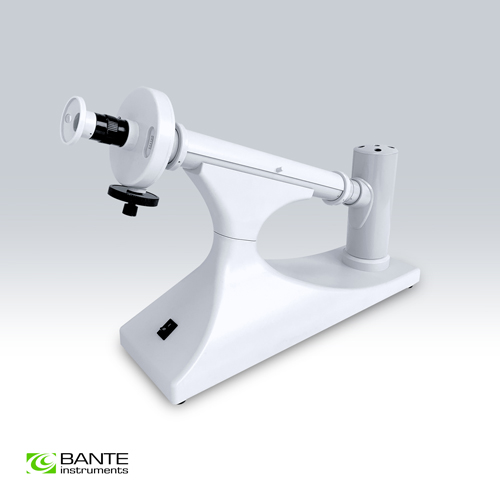

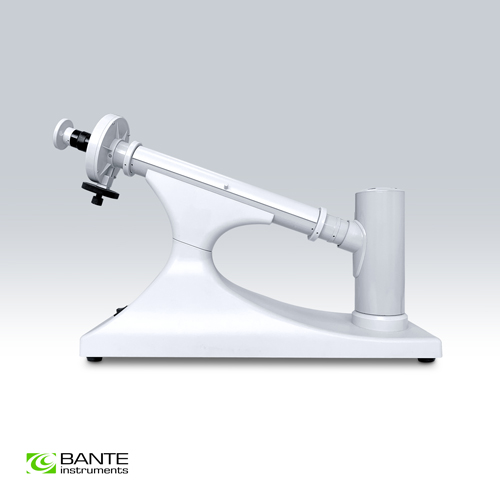

WXG-4 Manual Polarimeter
Easy-to-use manual polarimeter with a measurement range of -180° to +180° and is suitable for measuring the optical rotation of optically active substances, accuracy: 0.05°.
Features:
This polarimeter is installed with a 589 nm light source. Switch on the power, the polarized light
beam passes through the polarizer filter. The operator can observe distinct visual fields through
the eyepiece.

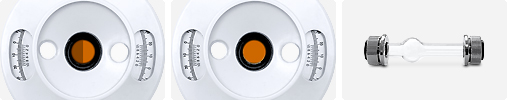

Place a sample tube into the measurement chamber and rotate the vernier knob until the visual
fields appear the equal brightness. Read and record the measured value from the the vernier
scale.
Applications:
• Education
• Food and sugar industries
Model |
| WXG-4 | POL-100 |
Range |
| ±180° | ±180° |
Scale Value |
| 1° | 1° |
Vernier |
| 0.05° | 0.05° |
Magnifier |
| 3X | 3X |
Light Source |
| Sodium lamp | LED with interference filters |
Wavelength |
| 589 nm | 589 nm |
Tube Length |
| Up to 200 mm | Up to 200 mm |
Power Supply |
| AC 220V / 50Hz | AC 110V / 60Hz |
Dimensions |
| 500 × 135 × 330 mm | 500 × 135 × 330 mm |
Weight |
| 5 kg | 5 kg |

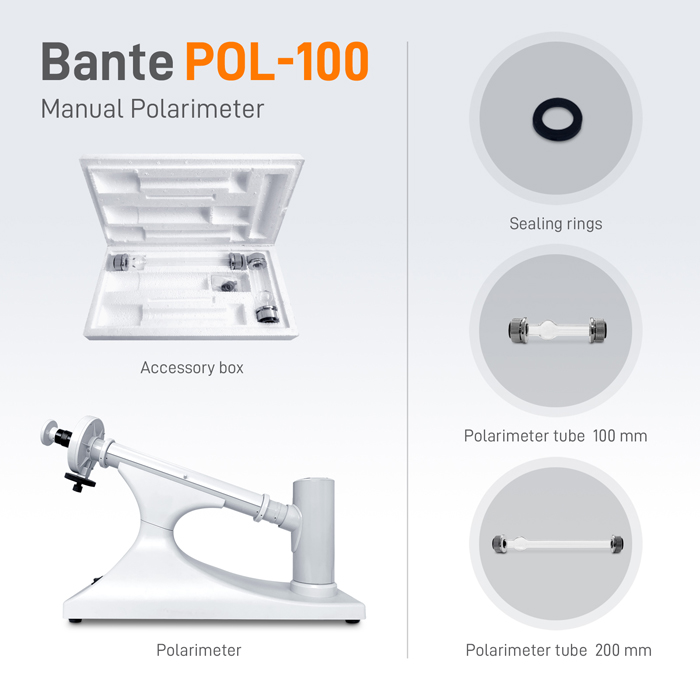

Ordering Code | Polarimeter Includes |
WXG-4 | Polarimeter tubes 100 and 200 mm |
| Sodium lamp (220V) | |
Sealing rings | |

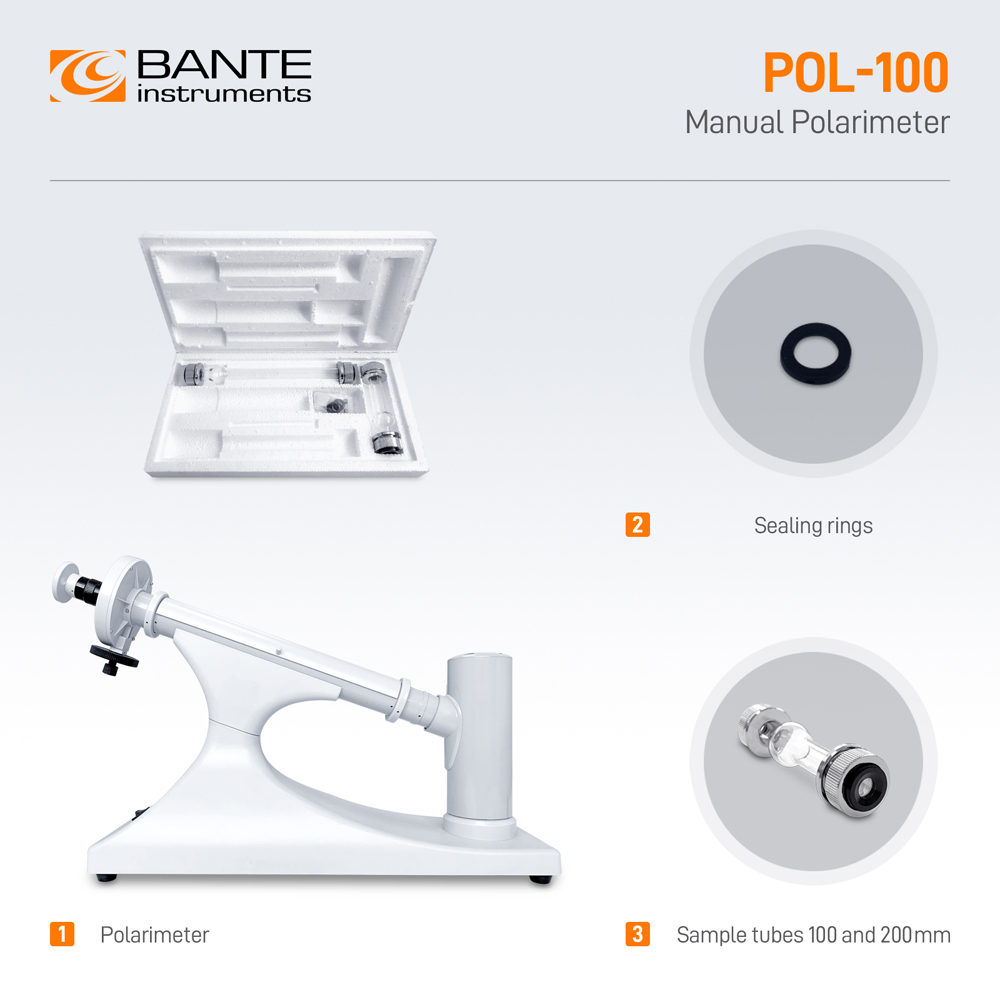

POL-100 | Polarimeter tubes 100 and 200 mm |
Sealing rings |
| Items | Description |
| Polarimeter Tube | For filling the sample solution (length 100/200mm) |
| Sodium Lamp | Wavelength 589.4 nm |
Ordering Code | Dimensions and Weights |
| WXG-4 | 60 × 20 × 40 cm, 5 kg |
POL-100 | 60 × 20 × 40 cm, 5 kg |
