Ion Meters

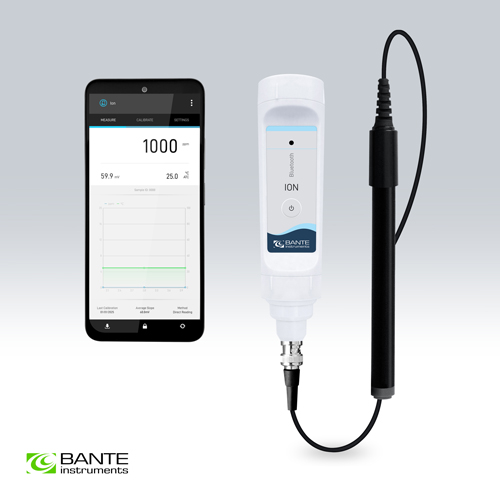

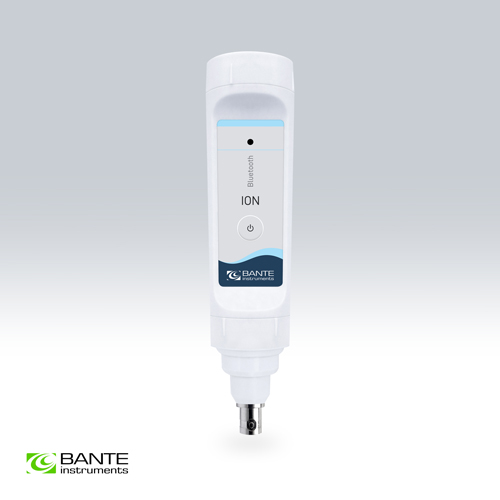

S30 Bluetooth Ion Meter
High-performance bluetooth ion meter with a BNC connector for connection to a variety of ion selective electrodes, the tester is suitable for Android smartphone or tablet.
Features:
• High-performance bluetooth ion meter provides 5 ion concentration measurement methods.
• Selectable measurement units - ppm, mg/L, mol/L and mmol/L.
• 2 to 5 points calibration, including the selection of 8 concentration points.
• Electrode management is capable of storing and recalling up to 3 electrode slopes.
• Manual temperature compensation eliminates the errors caused by temperature deviation.
• Auto-read function senses and locks the measurement endpoint.
• Timed interval readings send the measurement data to the memory or printer.
• Limit Alarm automatically alerts when the measurement exceeds the specified range.
• Calibration due alarm reminds the user to calibrate the tester regularly.
• Calibration log shows the date, time, calibration points and electrode slope.
• Password protection prevents the unauthorized calibration and settings.
• Reset function automatically resumes all settings back to the factory defaults.
Model | S30 | |
Ion | ||
Range | 0.001 to 30000 (depending on the range of ISE) | |
Resolution | 0.001, 0.01, 0.1, 1, automatic | |
Accuracy | ±0.5% F.S. (monovalent), ±1% F.S. (divalent) | |
Calibration | 2 to 5 points | |
Calibration Solutions | 0.001 / 0.01 / 0.1 / 1 / 10 / 100 / 1000 / 10000 | |
Measurement Units | ppm, mg/L, mol/L, mmol/L | |
Measurement Methods | Direct reading, known addition, known subtraction, | |
sample addition, sample subtraction | ||
Electrode Management | 1 to 3 | |
mV | ||
Range | -2000.0 to 2000.0 mV | |
Resolution | 0.1 / 1 mV, selectable | |
Accuracy | ±0.2 mV | |
Other Specifications | ||
Temperature Compensation | 0 to 100°C / 32 to 212°F, manual | |
Stability Criteria | Fast / Standard / Slow | |
Measurement Modes | Continuous / Auto-read measurement endpoint | |
Timed Interval Readings | 10 / 30 / 60 / 300 seconds or off | |
Calibration Due Alarm | 1 to 99 days or off | |
High/Low Limit Alarm | Selectable | |
Data Transfer | Memory / Printer | |
Password Protection | 6 digits | |
Connectivity | Bluetooth 4.0 or newer | |
Maximum Wireless Range | 10 m / 33 ft | |
Power Supply | 2 × 1.2V lithium batteries or AAA batteries | |
Environmental Conditions | 0 to 50°C / 32 to 122°F, relative humidity < 80% | |
Dimensions | 175 × 40(Ø) mm | |
Weight | 100 g |

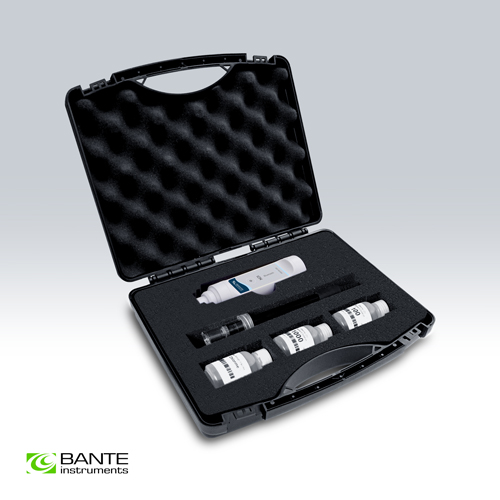

Ordering Code | Tester Includes |
S30 | Ion selective electrode |
Ion standard solutions 100, 1000 ppm | |
Ionic strength adjuster | |
Carrying case |
| Items | Description |
| ISE-NH3 Ammonia Electrode | Range: 0.01 to 17000 ppm |
| ISE-NH4 Ammonium Electrode | Range: 0.1 to 18000 ppm |
| ISE-Br Bromide Electrode | Range: 0.4 to 81000 ppm |
| ISE-Cd Cadmium Electrode | Range: 0.1 to 11200 ppm |
| ISE-Ca Calcium Electrode | Range: 0.02 to 40100 ppm |
| ISE-Cl Chloride Electrode | Range: 1 to 35000 ppm |
| ISE-Cu Copper Electrode | Range: 0.06 to 6400 ppm |
| ISE-CN Cyanide Electrode | Range: 0.03 to 260 ppm |
| ISE-F Fluoride Electrode | Range: 0.02 to 1900 ppm |
| ISE-I Iodide Electrode | Range: 0.06 to 127000 ppm |
| ISE-Pb Lead Electrode | Range: 0.2 to 20800 ppm |
| ISE-NO3 Nitrate Electrode | Range: 0.4 to 62000 ppm |
| ISE-K Potassium Electrode | Range: 0.04 to 39000 ppm |
| ISE-Ag Silver Electrode | Range: 0.01 to 107900 ppm |
| ISE-Na Sodium Electrode | Range: 0.002 to 69000 ppm |
| ISE-S Sulfide Electrode | Range: 0.003 to 32000 ppm |
| ISE-WH Water Hardness Electrode | Range: 0.05 to 200 mmol/L |
| Ion Standard Solutions | For ion concentration calibration |
| Ionic Strength Adjusters | For adjusting the pH and background ionic strength |
| Bluetooth Printer | For printing the measurement data |
Ordering Code | Dimensions and Weights |
S30 | 28 × 8 × 25 cm, 1.5 kg |
